• Product images
• Product description

•

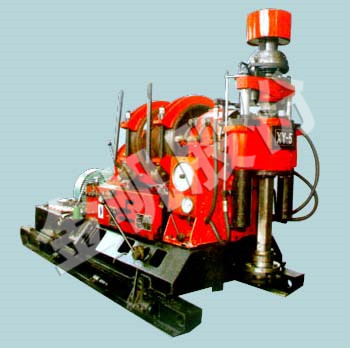

• Introduction The XY-5 core drilling rig is mainly used for diamond small diameter drilling in the exploration of metallic and non-metallic solid deposits. It can also be used for drilling large diameter alloys. Vertical and inclined holes can be drilled. It can also be used for exploration and engineering drilling of hydrological wells, oil and gas fields.

  Main features ● The vertical shaft has a high rotational speed and a wide range of speed regulation.
  ● Equipped with water brakes, the descent of drilling tools is stable and safe, and the operation is labor-saving; The brake lining has a long service life.
  ● Adopting a wet clutch, reliable and durable. There is a braking device that can quickly stop the vehicle.
  ● The drilling rig has a wide base, low center of gravity, and good drilling stability. There are two types of turners available for users to choose from: regular and large diameter.
  ● The hydraulic system is equipped with a dedicated valve port, which can be used with a pipe twisting machine.

  Technical Parameter

  Diameter（mm）	Ordinary rotary actuator:￠50 ￠60 Large diameter rotator:￠89
  drilling depth（m）	1000 1500
  torque（kN.m）	0.39 5.64
  Drilling angle	90 80
  Vertical shaft speed（r/min）	straight：85；166；261；294；355；577；906；1232 reverse side：65；225
  Vertical axis travel（mm）	500
  Vertical axis large lifting capacity（kN）	135
  Large lifting capacity of a single winch rope（kN）	40
  Travel of the reverse oil cylinder（mm）	450
  External dimensions（L*W*H mm）	3190*1495*2140
  Host quality（kg）	3500
  Electricity motivation	55kW 1470r/min
  Firewood oil engine	80HP 1500r/min
