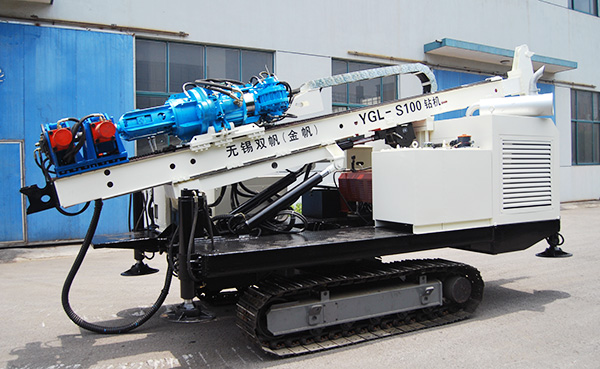

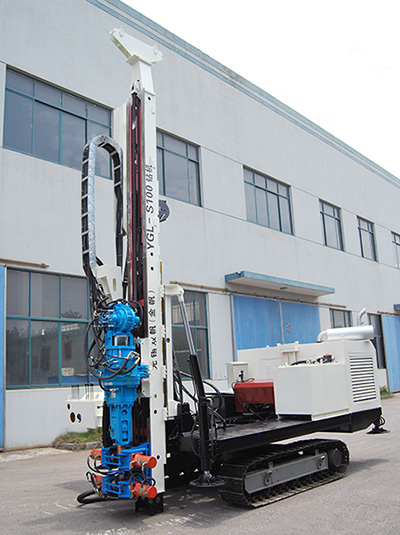

• Product images
• Product description

•



• Technical Parameter(一)

  Model	YGL-S100
  Nominal depth(m)	100
  Sampling/Ground source air conditioning heating hole diameter(mm)	86/126
  Power head rotation speed(min-1)	0-41；0-82
  Power head output torque(N.m)	low speed 5400/high speed 2700
  Power head impact frequency(cpm)	4000
  Power head impact force(kN)	78.4(8000kgf)
  Power head unboxing	0~67o(170mm By diameter)
  Power head provides thrust/lifting force(kN)	40/60
  Power head stroke(mm)	3500
  Mast slip compensation(mm)	600
  Winch lifting force, single rope	11
  Firewood Oil engine and power	CUMMINS 4BT3.0-C100     100ps @ 1800
  External dimensions/transportation status	6300*2150*2550
  Overall weight(kg)	8500


  Our company reserves the right to modify the parameters and instructions of the products listed in the sample without prior notice.

  Characteristic A heavy-duty drilling rig with strong vibration drilling capabilities, providing excellent performance and a wide range of applications, suitable for drilling deeper environmental survey holes, logging, soil remediation, and ground source heat pump acquisition holes;

  Application Equipped with Japanese original sonic power head
  1.Environmental survey
  2.Drilling of geothermal heating systems
  3.Engineering geological survey holes
  4.Water wells and hydrological observation holes
