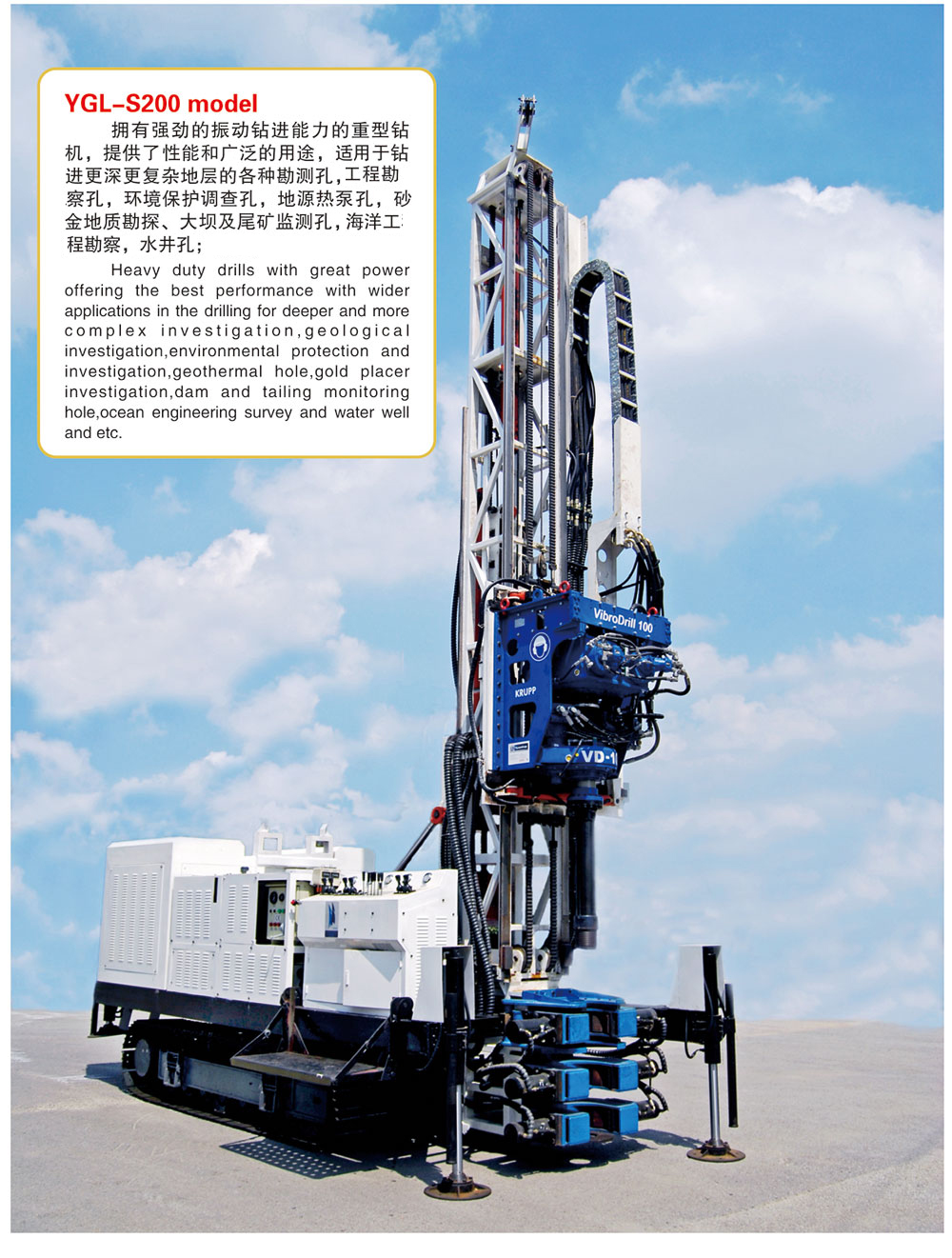

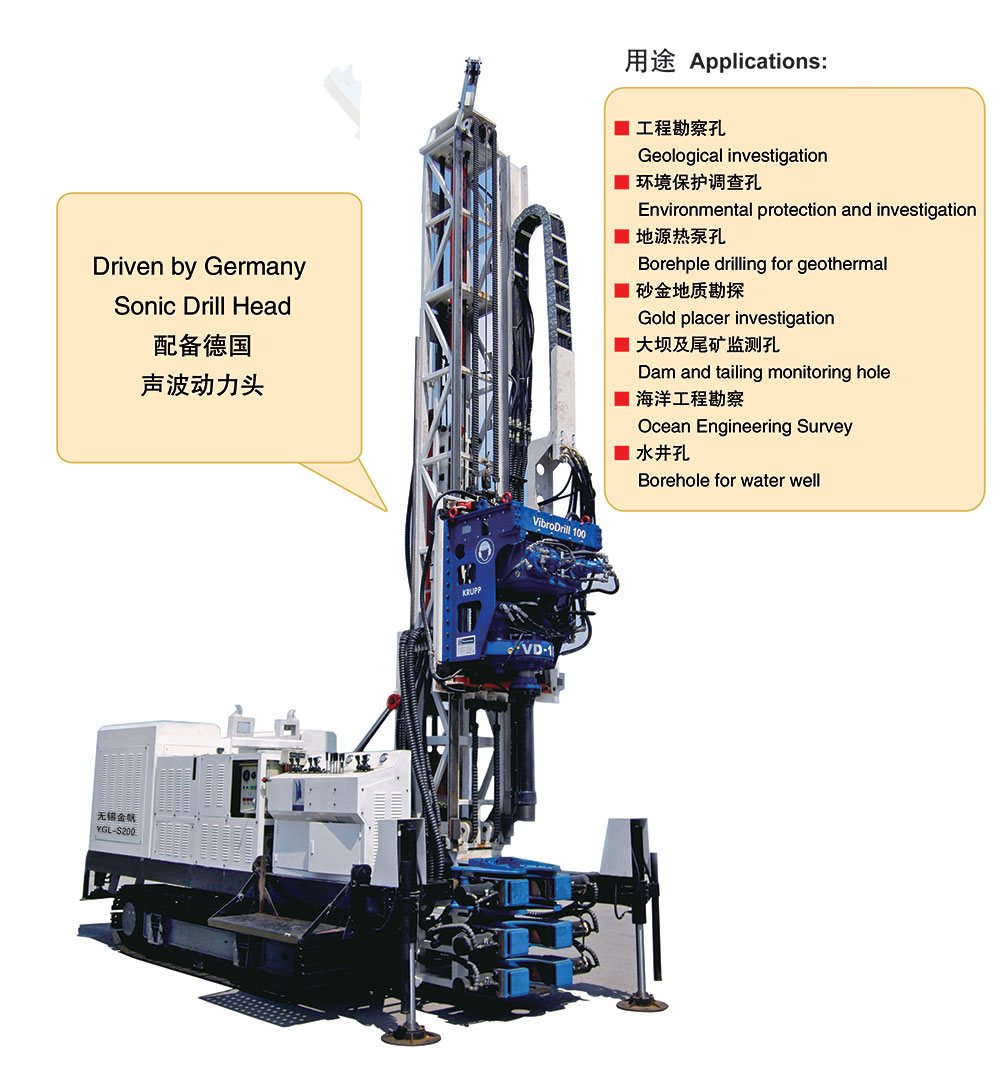

| Model | YGL-S200 | |
|
Capacity |
Borehole depth | 100-200 |
| Aperture | 76-168 | |
|
Drilling angle |
0-90° | |
|

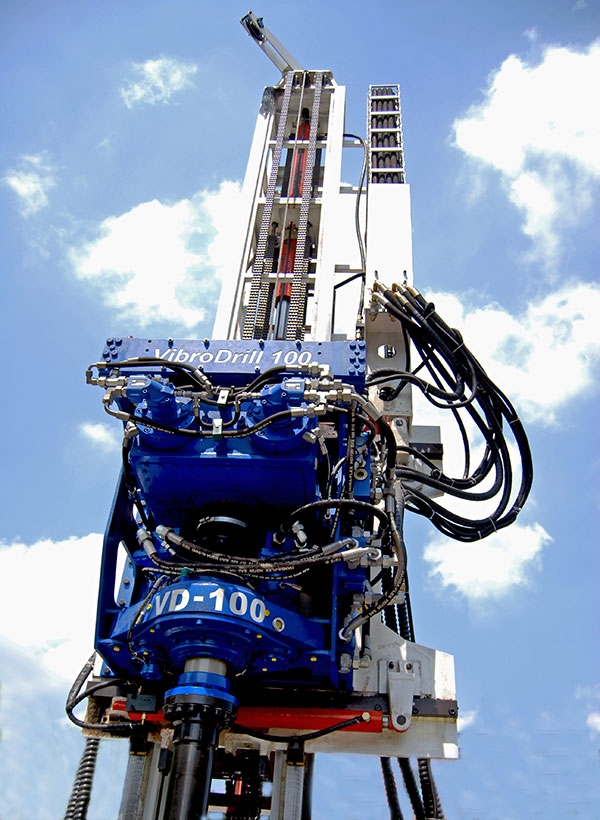

Power head |
Rotator speed | 0-52/103 |
| Rotator torque | 9300/3900 | |
| Vibration frequency (times/minute) | 6000 | |
| Vibration force | 200 | |
| Weight | 1800 | |
|
Winch |
Lift force |
25 |
| Rope diameter * rope capacity | 7*50 | |
|
Feed into the system |
Press | 50 |
| Pressing speed m/min | 11.3; 72 | |
| Pulling force KN | 75 | |
| Pulling speed m/min | 7.8; 50 | |
| Provide progress mm | 3500 | |
|
Firewood Power |
Power KW | 160 |
| Speed rpm | 2200 | |
|
Overall weight |
12 | |
| External dimensions | Transport L*W*H (mm) Transportation | 8130X2300X3270 |
| Work L*W*H (mm) Working | 5130X2300X8200 |
